Stainless Single Direction THB Bearings

Stainless Single Direction THB Bearings

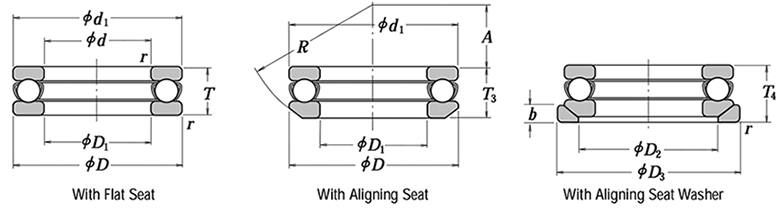

Drawing

Datasheet

Bearing No.	Dimensions			Mass	Bearing No.	Dimensions			Mass
Bearing No.	d	D	B		Bearing No.	d	D	B
–	mm	mm	mm	kg	–	mm	mm	mm	kg
51100	10	24	9	0.02	51200	10	26	11	0.03
51101	12	26	9	0.022	51201	12	28	11	0.034
51102	15	28	9	0.023	51202	15	32	12	0.046
51103	17	30	9	0.025	51203	17	35	12	0.053
51104	20	35	10	0.037	51204	20	40	14	0.083
51105	25	42	11	0.056	51205	25	47	15	0.11
51106	30	47	11	0.063	51206	30	52	16	0.13
51107	35	52	12	0.08	51207	35	62	18	0.22
51108	40	60	13	0.12	51208	40	68	19	0.28
51109	45	65	14	0.14	51209	45	73	20	0.3
51110	50	70	14	0.16	51210	50	78	22	0.37
51111	55	78	16	0.23	51211	55	90	25	0.59
51112	60	85	17	0.2	51212	60	95	26	0.65
51113	65	90	18	0.33	51213	65	100	27	0.78
51114	70	95	18	0.35	51214	70	105	27	0.79
51115	75	100	19	0.4	51215	75	110	27	0.83
51116	80	105	19	0.42	51216	80	115	28	0.91
51117	85	110	19	0.44	51217	85	125	31	1.2
51118	90	120	22	0.67	51218	90	135	35	1.7
51120	100	135	25	0.97	51220	100	150	38	2.2
